Chain Hoist Vitali 1 Tonne 20 FT x 1 Fall

The Vitali-Intl® Chain Hoist offers superior design of top hook holders for double or several columns of load chains. Experience exceptional durability thanks to the all-steel construction featuring rugged gear case enclosure and handwheel cover. Thanks to low headroom, the Vitali-Intl® Chain Hoist has increased lifting height and has Grade 100 heat-treated black finish load chain. The Vitali-Intl® Chain Hoist has seal type caged ball bearings and caged roller bearings on the pinion shaft. This minimizes the manual effort thanks to the efficient drive train. Reinforced double pawl brake system and larger diameter pawl springs ensure a reliable brake.

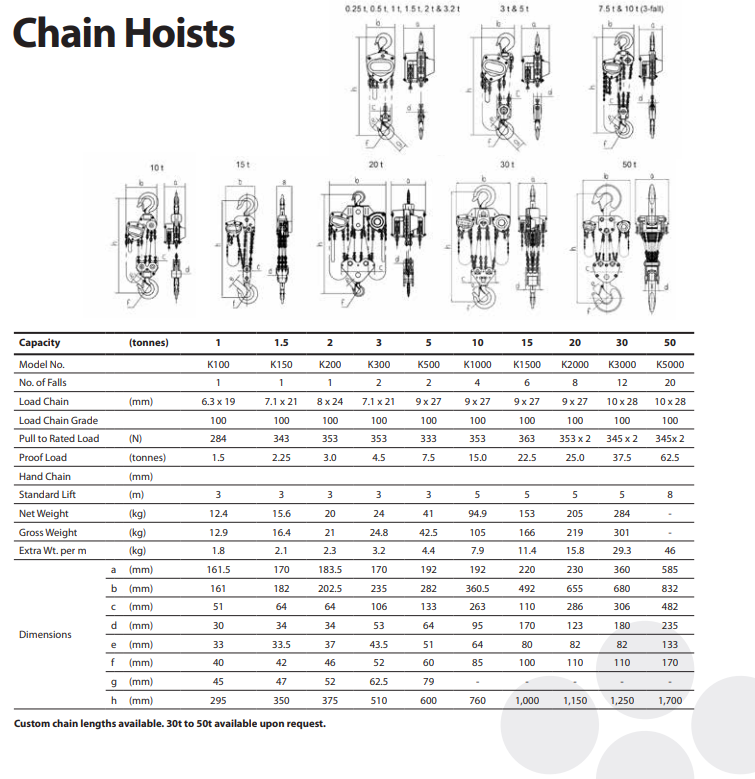

Specifications: 1 tonne, 20 ft x 1 Fall

• Model No.: K100
• No. of Falls: 1
• Load Chain (mm): 6.3 X 19
• Load Chain Grade: 100
• Pull to Rated Load (N): 284
• Proof Load (tonnes): 1.5
• Standard Lift (m): 3

Other Sizes Available
