Connecting Link GR100 3/4" AMH
- SKU:
- 4971-CL20AMH
- Weight:
- 4.69 LBS
Frequently bought together:
Description
Grade 100 Connecting Links have a wide body that allows for extra room for common rigging jobs such as top and bottom fitting or shackling. Made specifically for Grade 100 Chain, these Connecting Links have a 4:1 design factor, are proof tested, and certified.
|

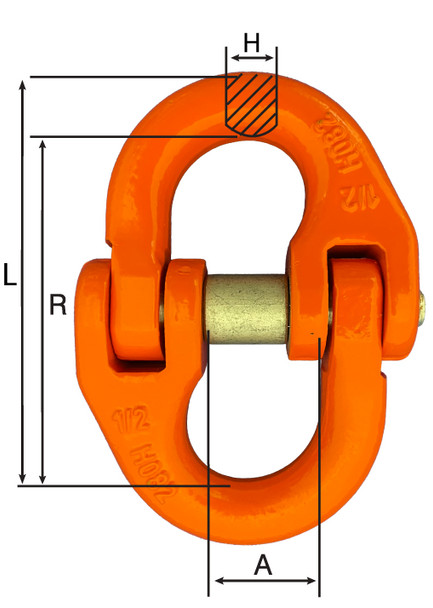

Size
(in) |
Size
(mm) |
Dimensions |
WLL
(lbs) |
Weight
(lbs) |
|||
| H | A | K | L | ||||
| 9/32 | 7 | 0.35 | 0.75 | 2.35 | 3.03 | 4,300 | 0.35 |
| 5/16 | 8 | 0.38 | 0.75 | 2.46 | 3.23 | 5,700 | 0.40 |
| 3/8 | 10 | 0.49 | 0.91 | 2.70 | 3.67 | 8,800 | 0.75 |
| 1/2 | 13 | 0.62 | 1.20 | 3.56 | 4.82 | 15,000 | 1.50 |
| 5/8 | 16 | 0.78 | 1.42 | 4.00 | 5.57 | 22,600 | 2.68 |
| 3/4 | 20 | 0.94 | 1.70 | 4.75 | 6.71 | 35,300 | 4.70 |
| 7/8 | 22 | 1.00 | 2.05 | 6.11 | 8.97 | 42,700 | 10.70 |
| 1 | 26 | 1.19 | 2.43 | 7.01 | 9.87 | 59,700.00 | 15.77 |
| 1 1/4 | 32 | 1.38 | 3.17 | 8.17 | 11.79 | 90,400 | 26.21 |
