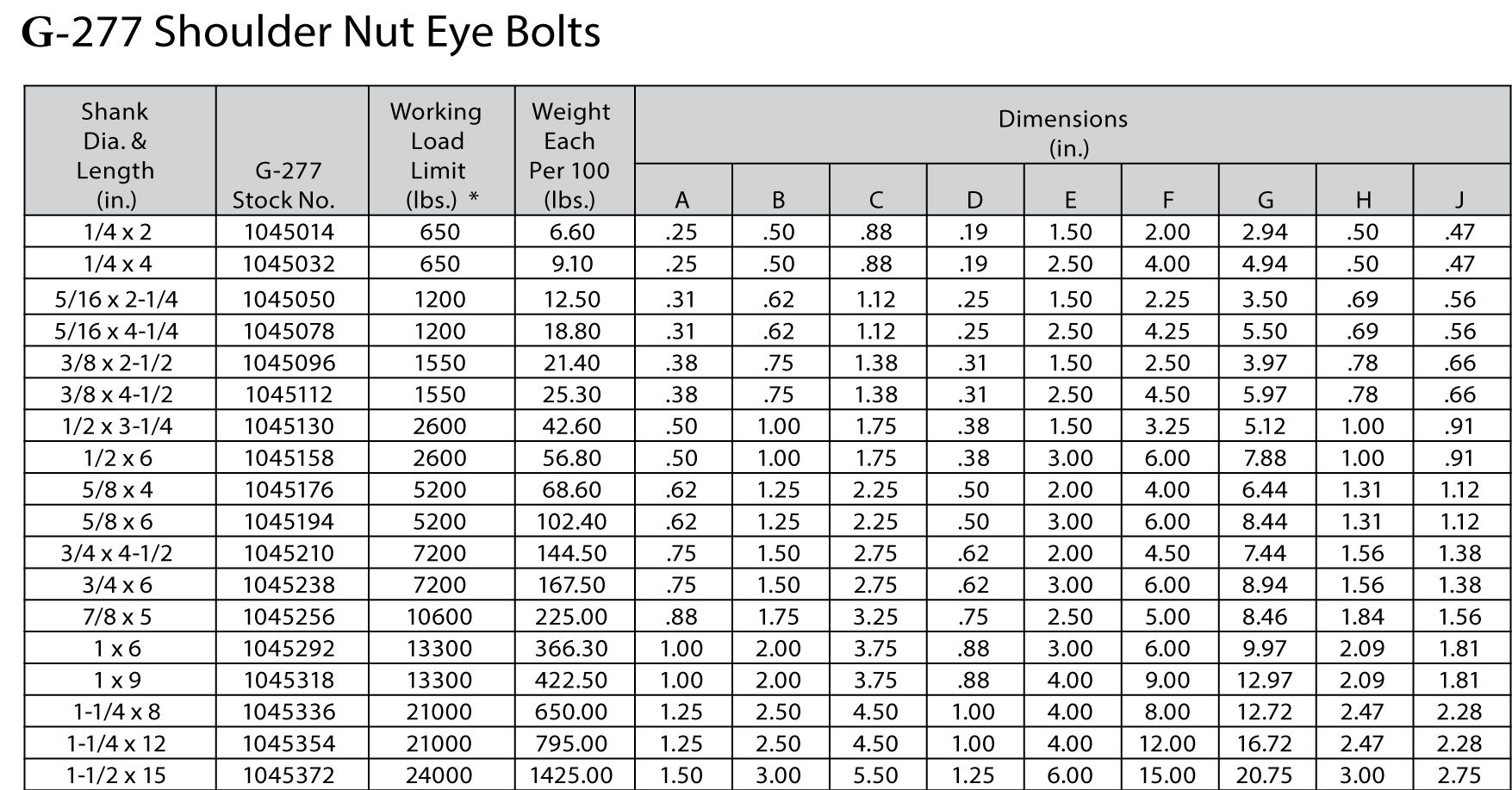

Eyebolt Shoulder Nut G277 Galv. 5/16" x 4-1/4"

• Forged Steel - Quenched and Tempered.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Working Load Limits shown are for in-line pull.
• For angle loading, please carefully read Warning and Application Information on attached pages or in
the latest edition Crosby General Catalogue or by visiting www.thecrosbygroup.com.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor,
proof load and temperature requirements. Importantly, these bolts meet other critical performance
requirements including fatigue life, impact properties and material traceability, not addressed by
ASME B30.26.
• All Bolts Hot Dip galvanized after threading (UNC).
• Furnished with standard Hot Dip galvanized, heavy hex nuts.
