Eyebolt Shoulder Type Machinery M279GT 12MM
- SKU:
- 2555-BS12M
- Availability:
- Call (306) 242-7073 to order
- Weight:
- 0.24 LBS
Frequently bought together:
Description
Metric Shoulder Machinery Eye Bolts are generally used as equipment lifting points. Made of Forged Steel and with a design factor of 5:1, these Metric Shoulder Machinerey eye bolts meet the EN 4278 & ASME B30.26 standards.

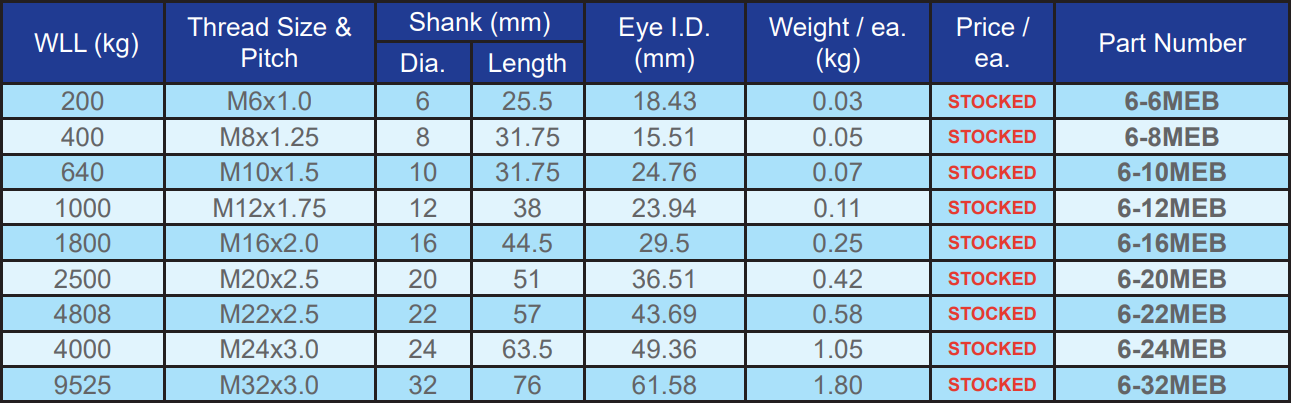

Specifications:
WLL (KG): 1,000
Thread Size & Pitch: M12 X 1.75
Shank Dia. (mm): 12
Shank Length (mm): 38
Eye I.D (mm): 23.94
