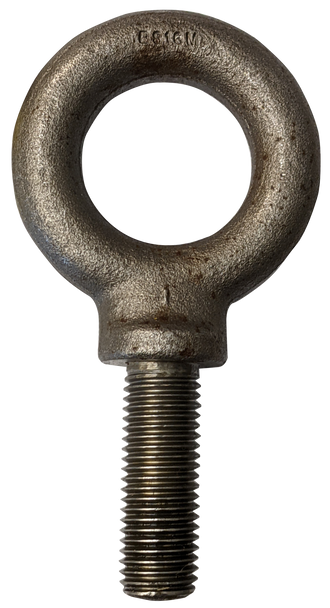

Eyebolt Shoulder Type Machinery M279GT 16MM
- SKU:
- 2555-BS16M
- Availability:
- Call (306) 242-7073 to order
- Weight:
- 0.55 LBS
Description
Metric Shoulder Machinery Eye Bolts are generally used as equipment lifting points. Made of Forged Steel and with a design factor of 5:1, these Metric Shoulder Machinerey eye bolts meet the EN 4278 & ASME B30.26 standards.

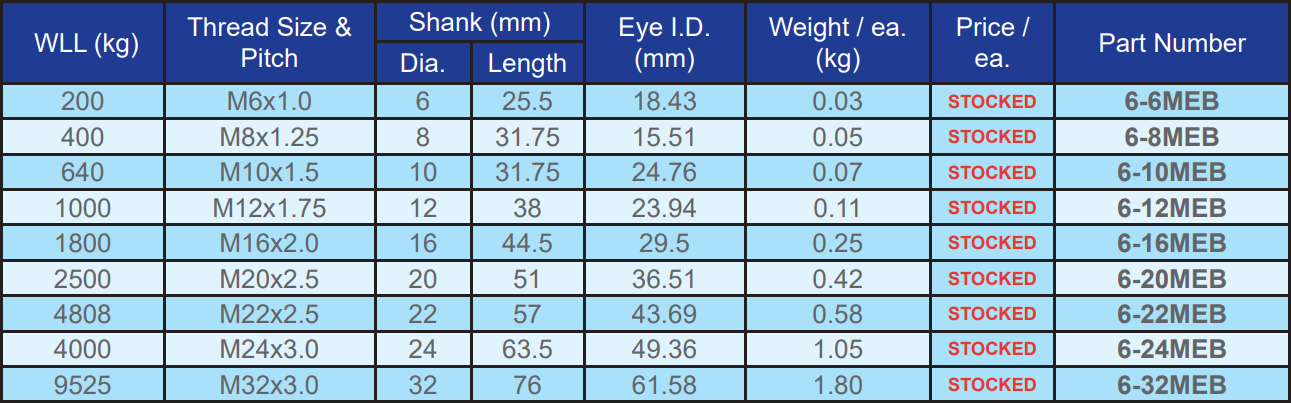

Specifications:
WLL (KG): 1,800
Thread Size & Pitch: M16 X 2.0
Shank Dia. (mm): 16
Shank Length (mm): 44.5
Eye I.D (mm): 29.5
