Eyebolt Shoulder Type Machinery M279GT 6MM

Metric Shoulder Machinery Eye Bolts are generally used as equipment lifting points. Made of Forged Steel and with a design factor of 5:1, these Metric Shoulder Machinerey eye bolts meet the EN 4278 & ASME B30.26 standards.

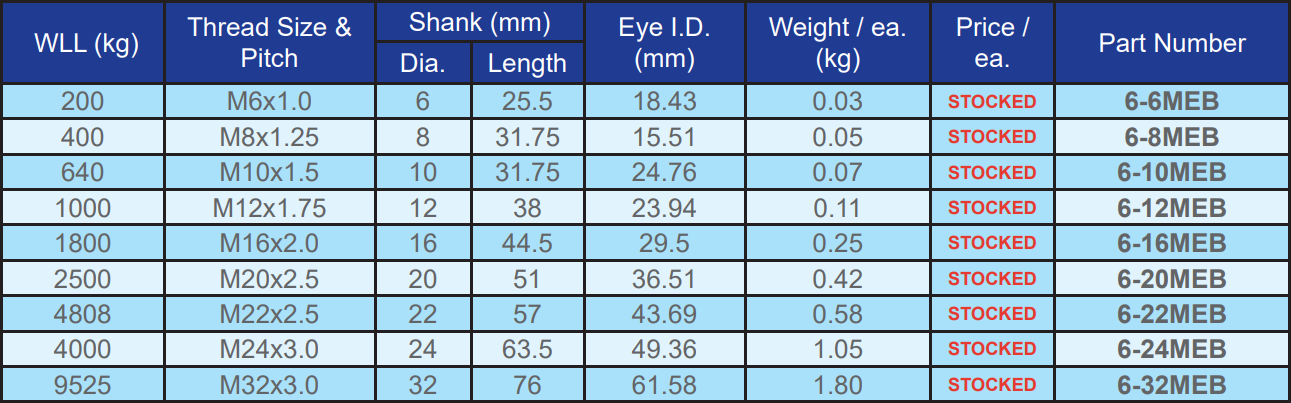

Specifications:

WLL (KG): 200

Thread Size & Pitch: M6 X 1.0

Shank Dia. (mm): 6

Shank Length (mm): 25.5

Eye I.D (mm): 18.43
