Crosby®

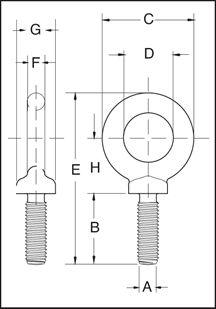

Eyebolt Shoulder Type Machinery S279 Crosby 1/2" x 1-1/2"
- SKU:
- 2550-9900217
- Weight:
- 0.28 LBS
Description
Shoulder Machinery eye bolts are generally used as equipment lifting points.
Specifications:
- Forged Steel - Quenched & Tempered.

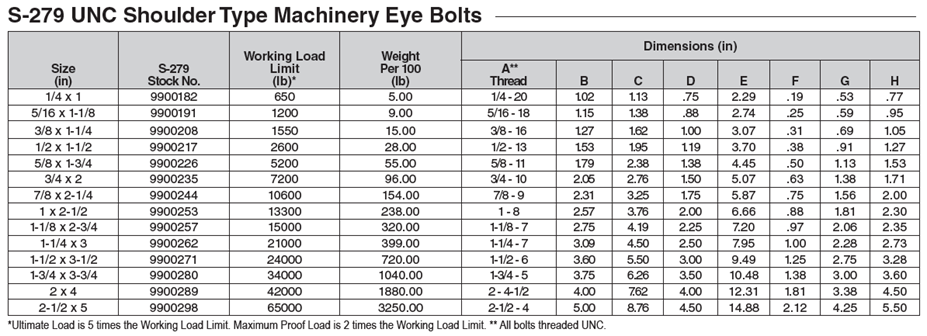

- Working Load Limits shown are for in-line pull.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Recommended for in-line pull.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductilit, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
