Green Pin

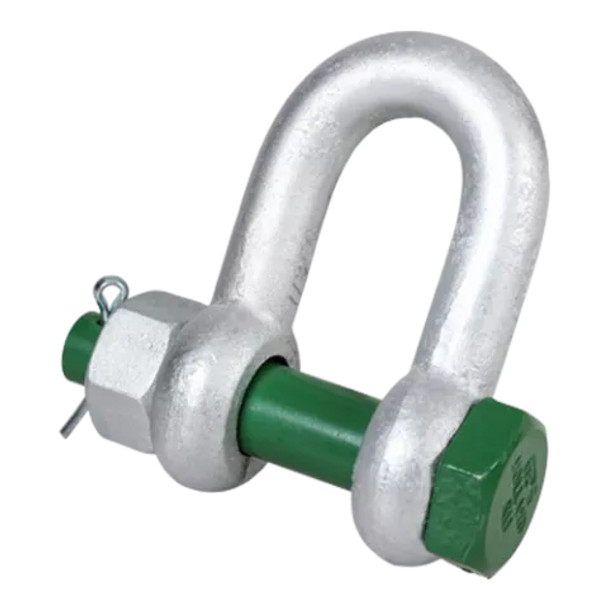

Shackle Dee G4153 Green Pin Safety Bolt WLL 6.5 Tonne 7/8"
- SKU:
- 2381-GPGDMB22
- Weight:
- 3.66 LBS
Description
Productcode
G-4153
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
- 2.1
- 2.2
- 3.1
- MTCa
- DNV 2.7-1a
- DNV 2.7-1b
- DNVGL-ST-0378
- CE
- ABS PDA
- ABS MA
Standard
EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A
