Turnbuckle Eye & Eye HG226 5/8" x 6"
- SKU:
- 2420-5/8X6
- Weight:
- 3.00 LBS
Description
A turnbuckle is a rigging device used to adjust tension in a wire rope assembly

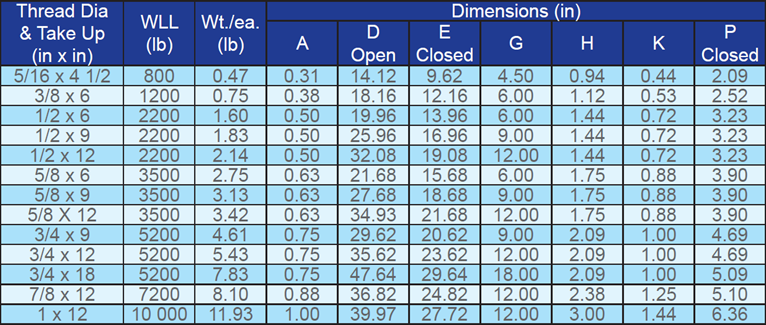

Take up length(inches)
Specifications:
- Manufactured to: Federal Specification FF-T791B, ASTM
- F1145, Type 1, Form 1 - Class 7 (G)
- Meet and/or exceeds: ASME B30.26
- Safety/Design Factor: 5:1
- Forged – Quenched and Tempered (Ends), Normalizing(Body)
- Hot dip galvanized & yellow powder coated.
- Production Code – Traceable to certificate & material.
- Ends: Sizes 1/4" through 1/2" c/w nut & bolt
- Sizes 5/8" through 2-3/4" c/w pin & cotter.
- Body/Thread: All sizes provided with Lock Nuts.
