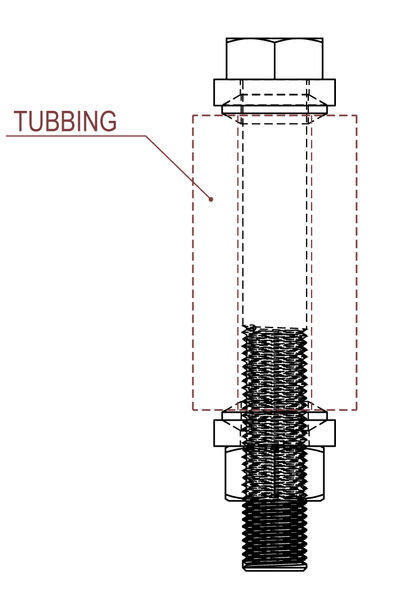

Tubbing Bolt Assembly Grade 8.8 (M39 X 300MM) DWG # 26673

Tubbing Bolts are specially designed for mine shaft tubbing applications. Each bolt assembly includes two steel washers and two lead washers that compress when torqued, helping create a seal against water ingress. Standard sizes are stocked for Saskatchewan mine shafts, with custom configurations available upon request.

Specifications:

• Model #:26673
• Weight: 14.5 kg
• Total Length:325mm
• Material Origin: China
• Dimensions in images

Features:

• Internally pull-tested to verify strength

Assembly Includes:
- (1) Bolt
- (1) Nut
- (2) Lead Washers
- (2) Steel Washers

Need a different size? Fill out this form, and one of our representatives will reach out to you.
